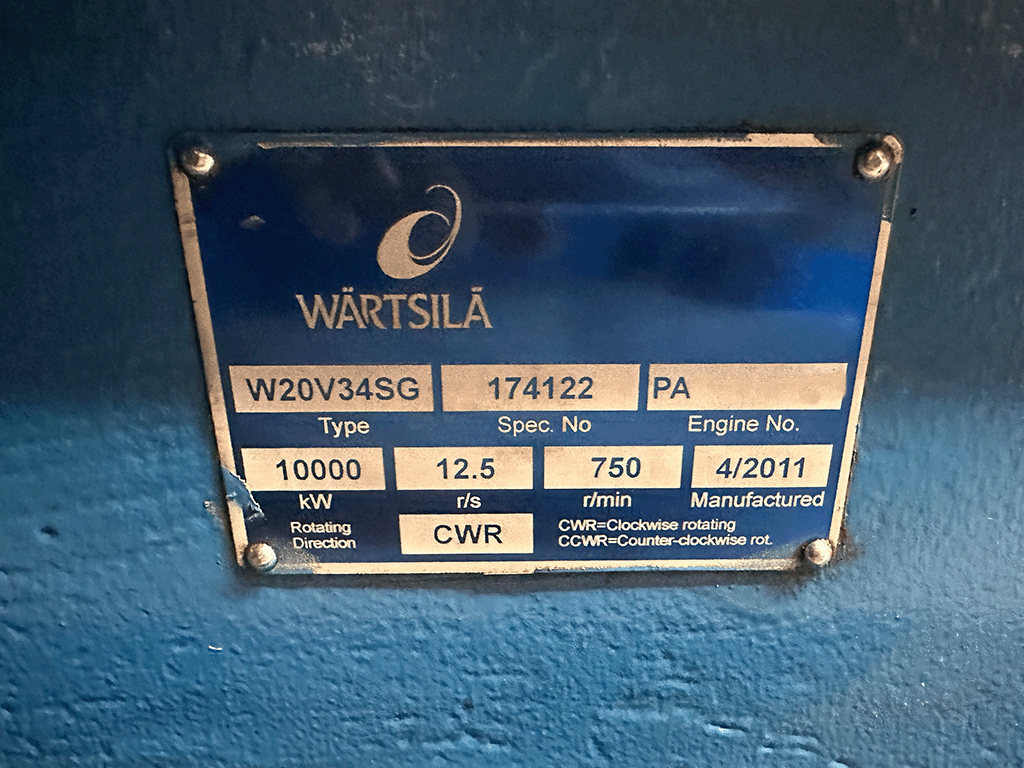

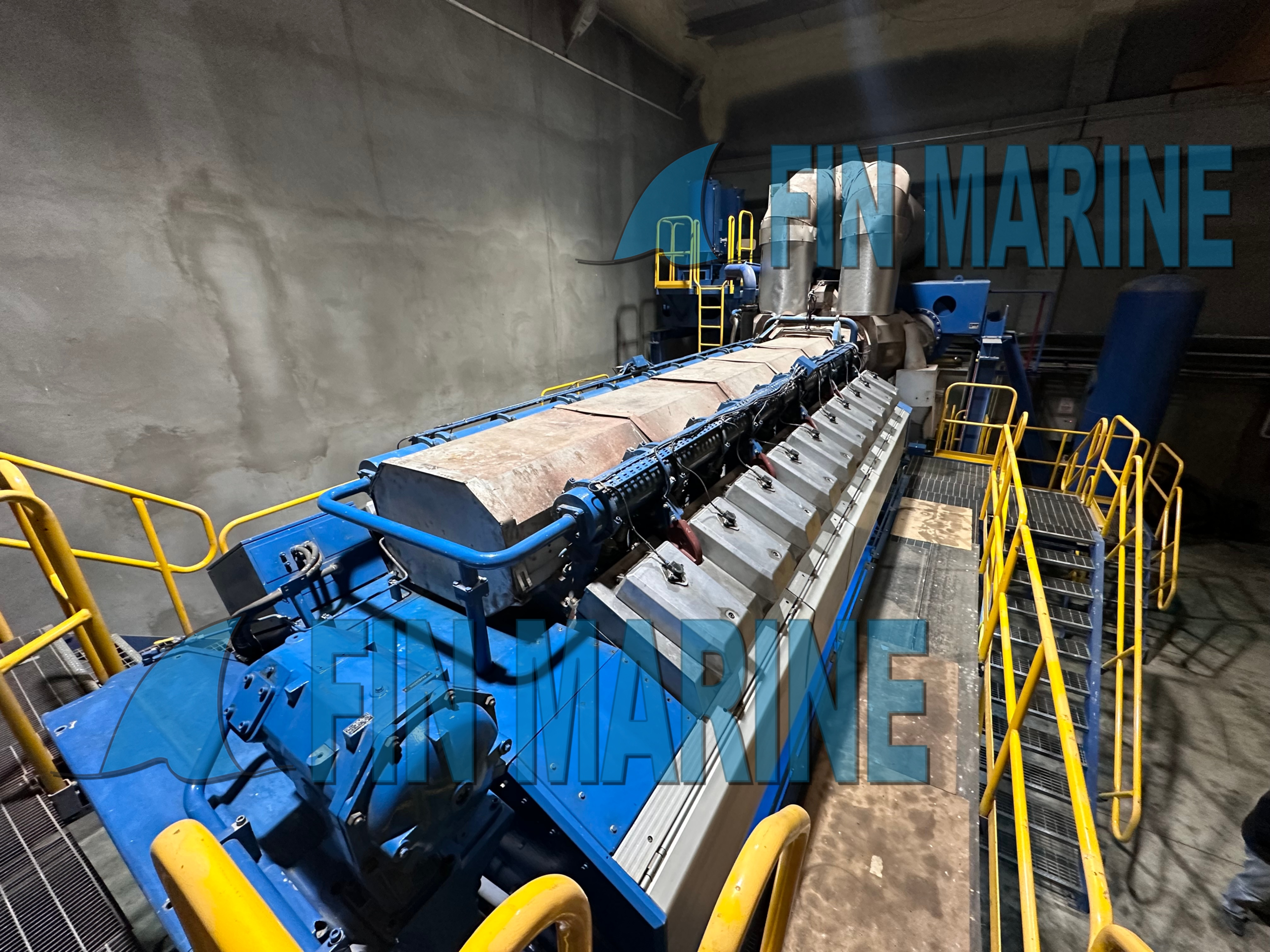

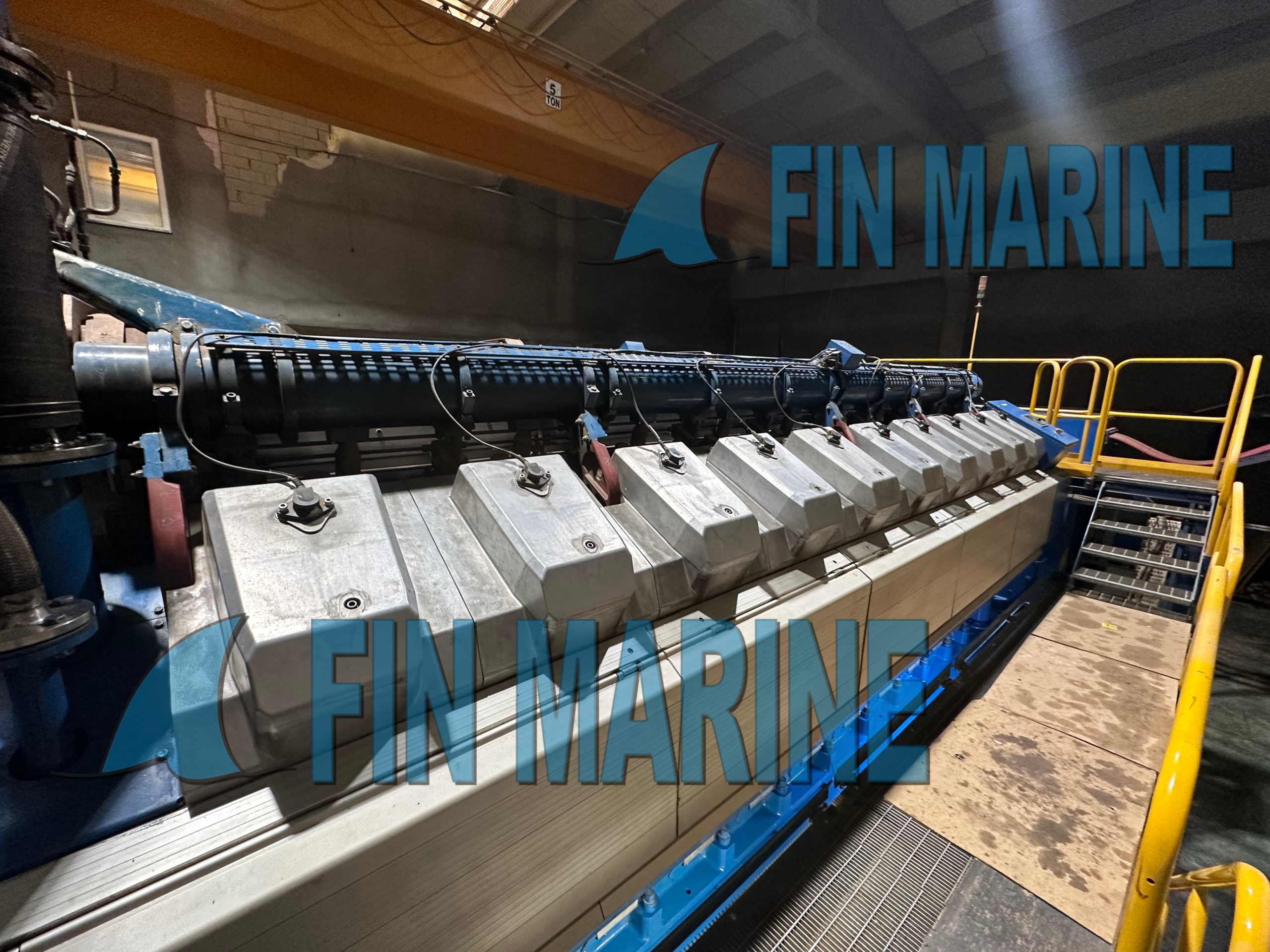

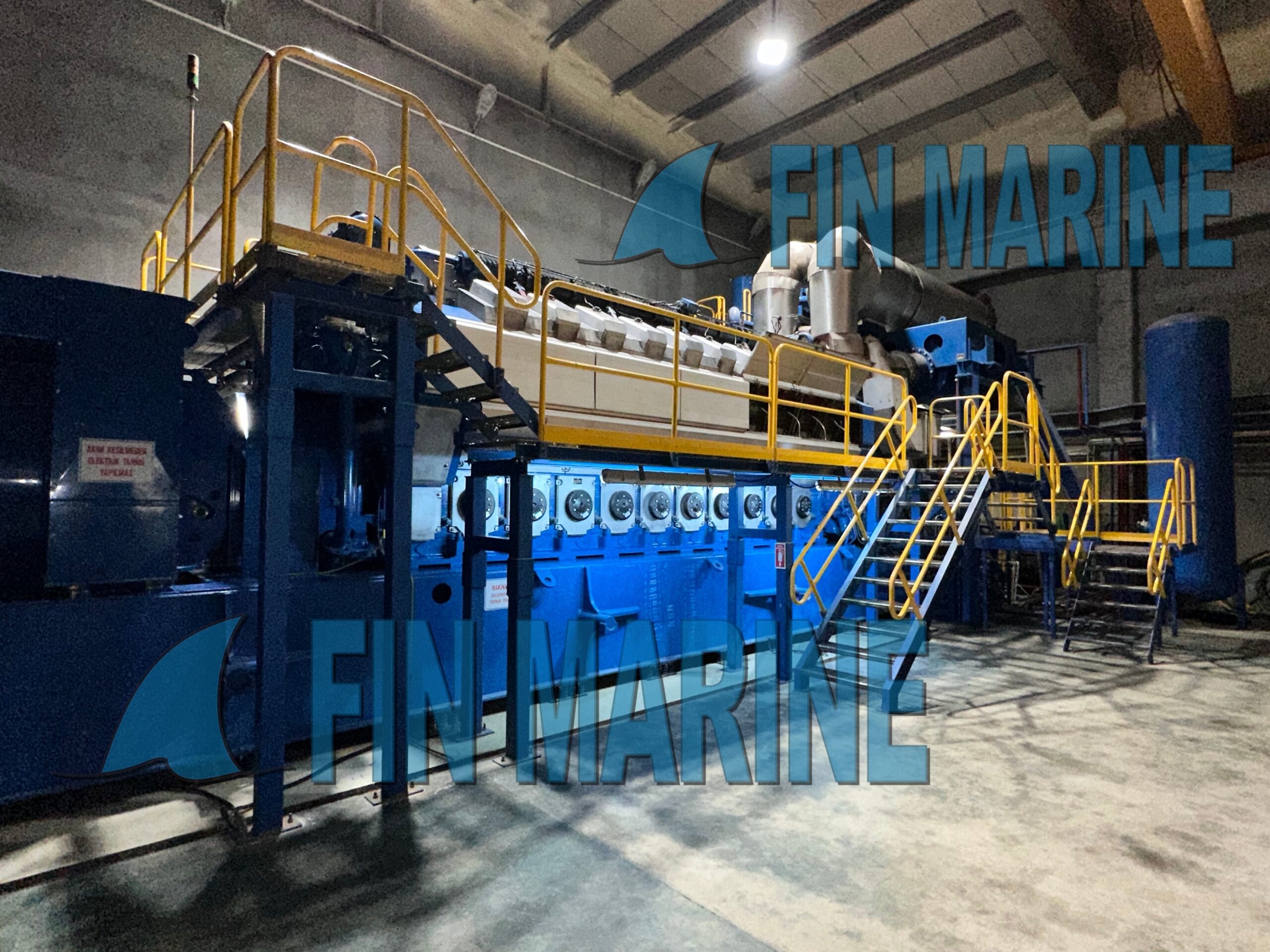

Wartsila 20V34SG complete Gas Power plant
9.7 MW 50 Hz 11K Volts
Year of make 2011
45.000 Working Hours

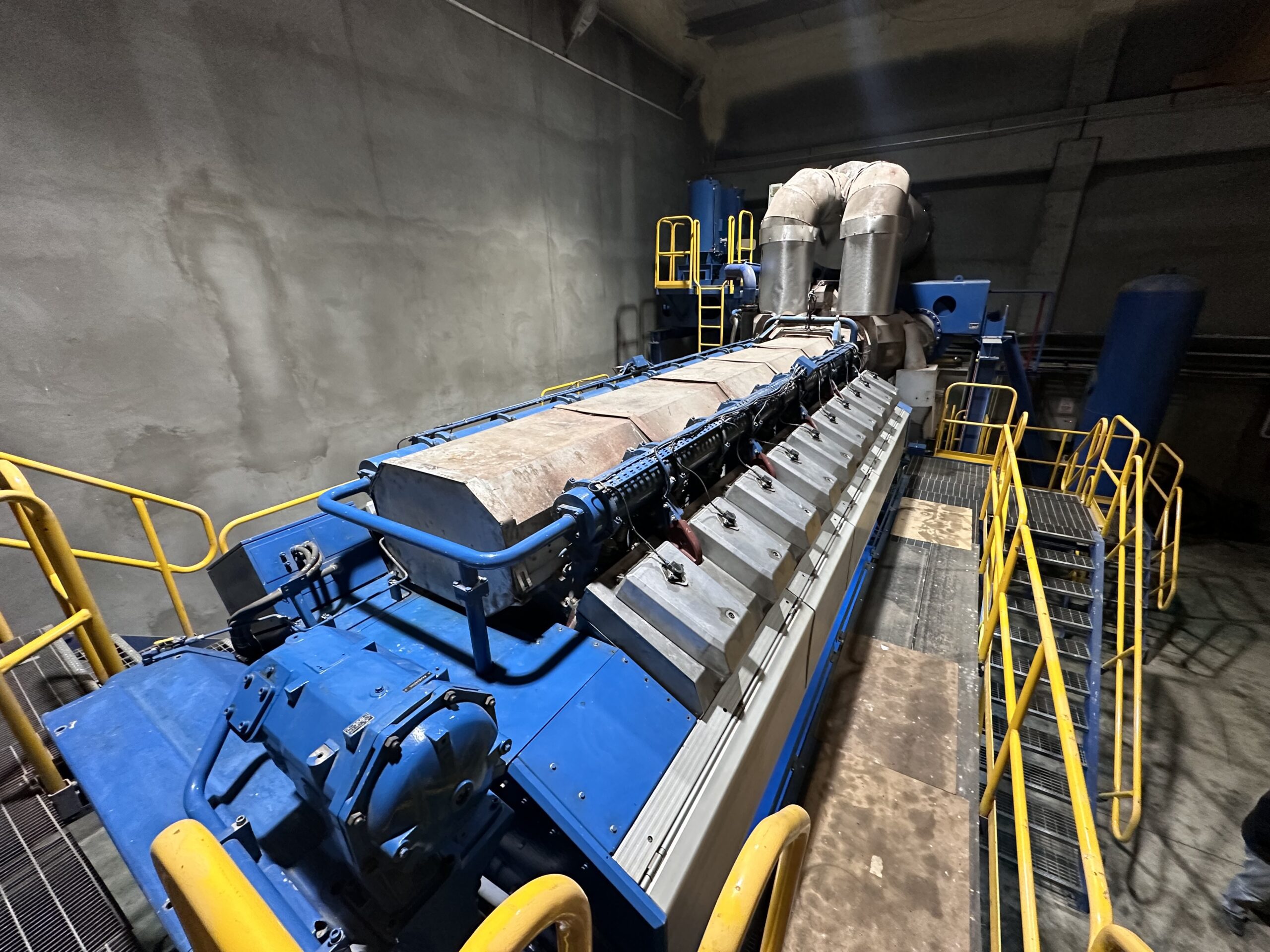

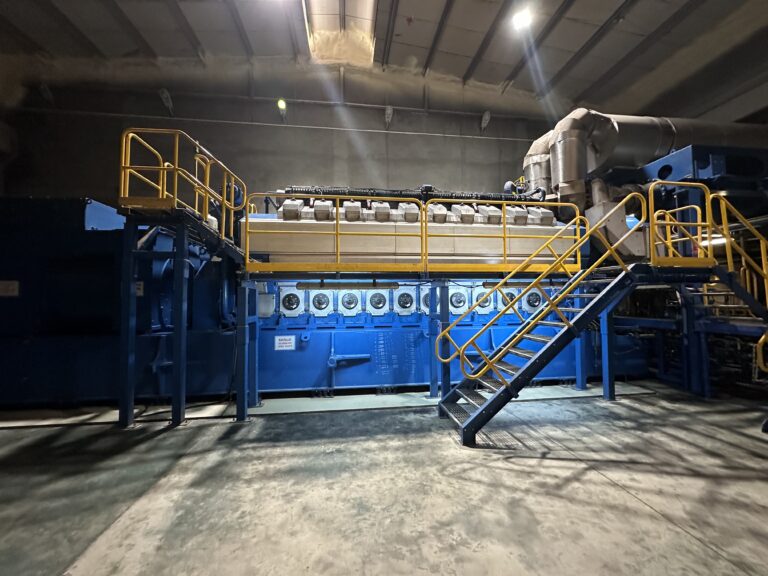

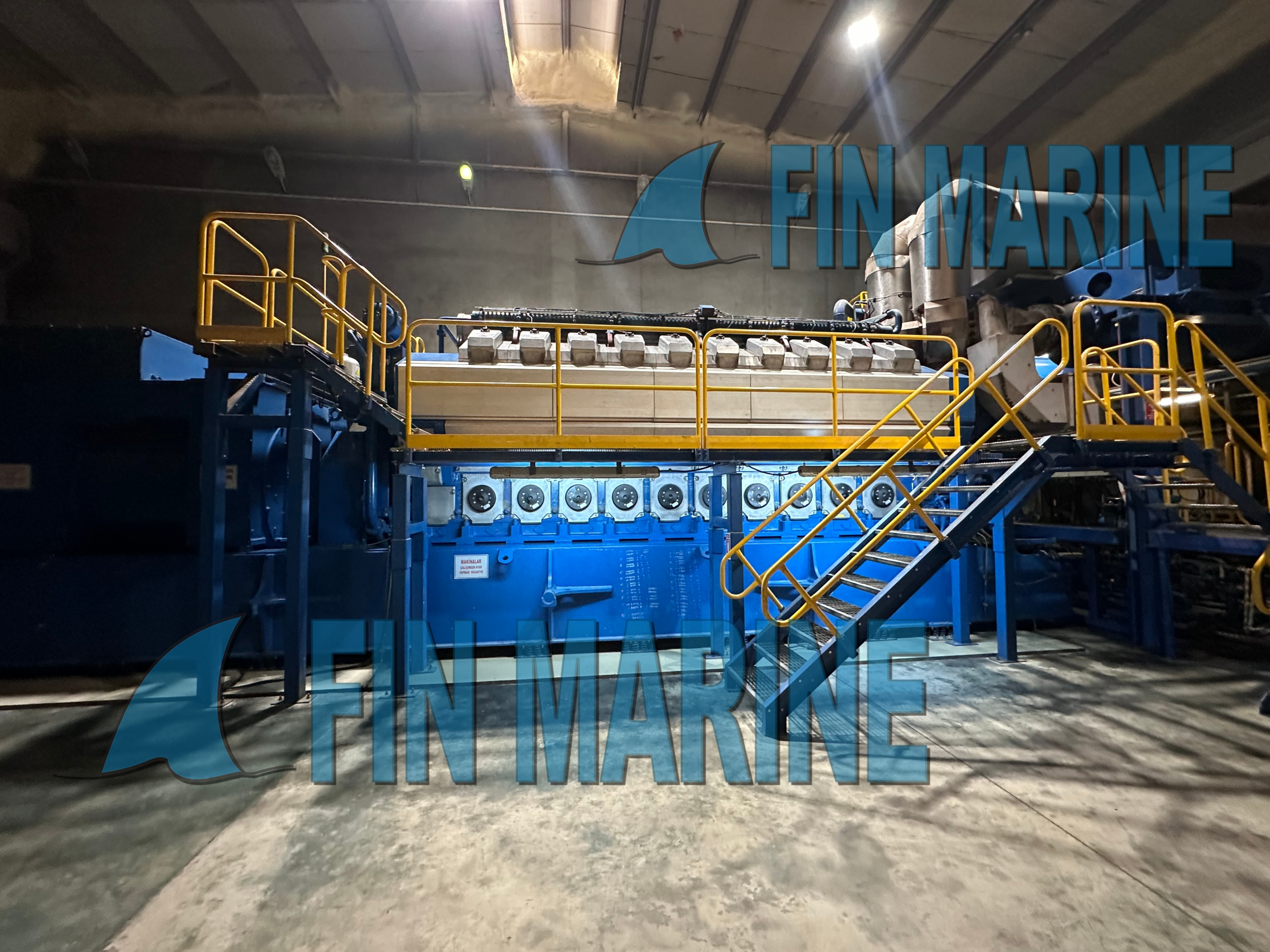

20V34SG genset with UNIC Control system
Maintenance done regularly by Wartsila

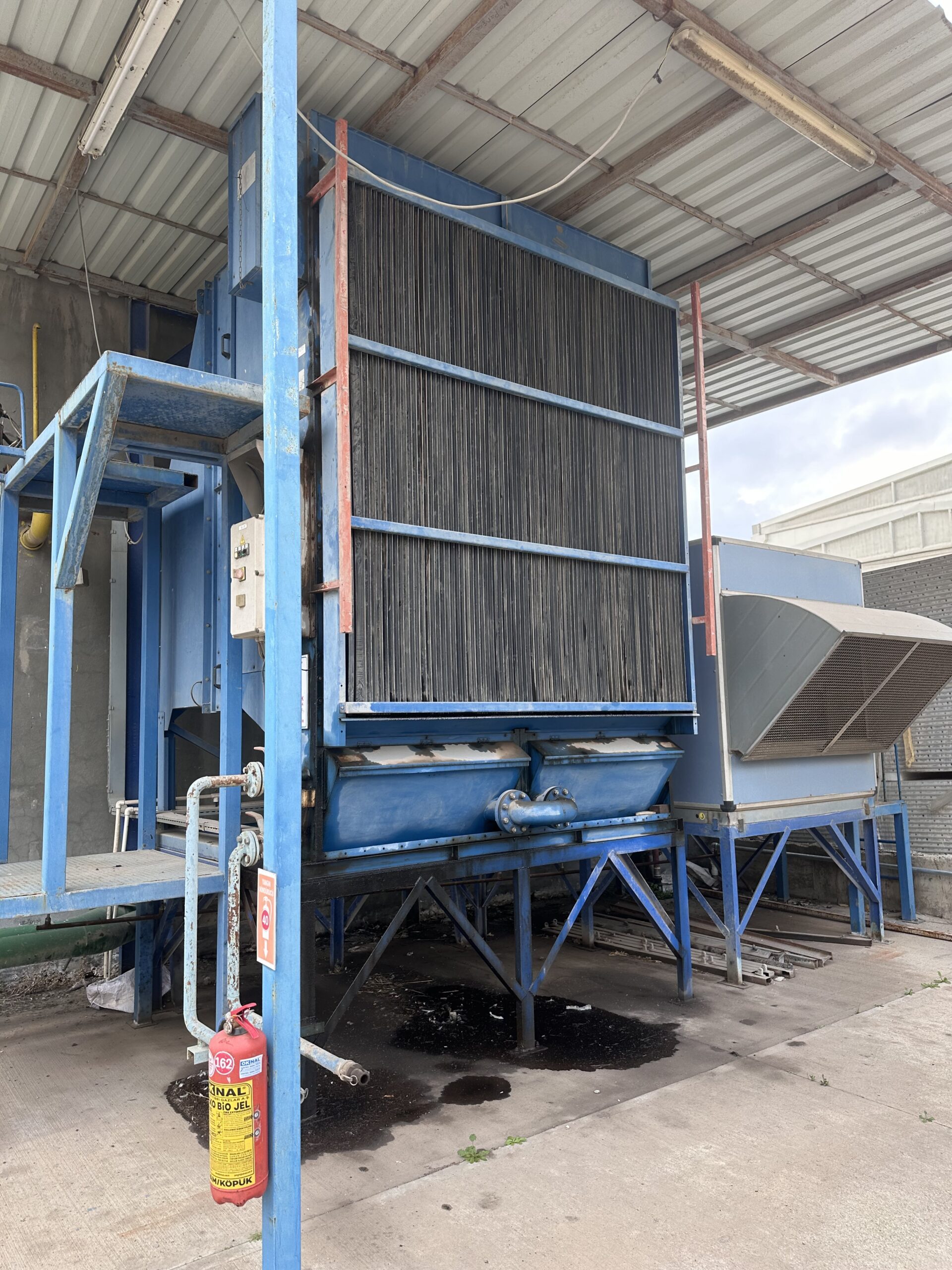

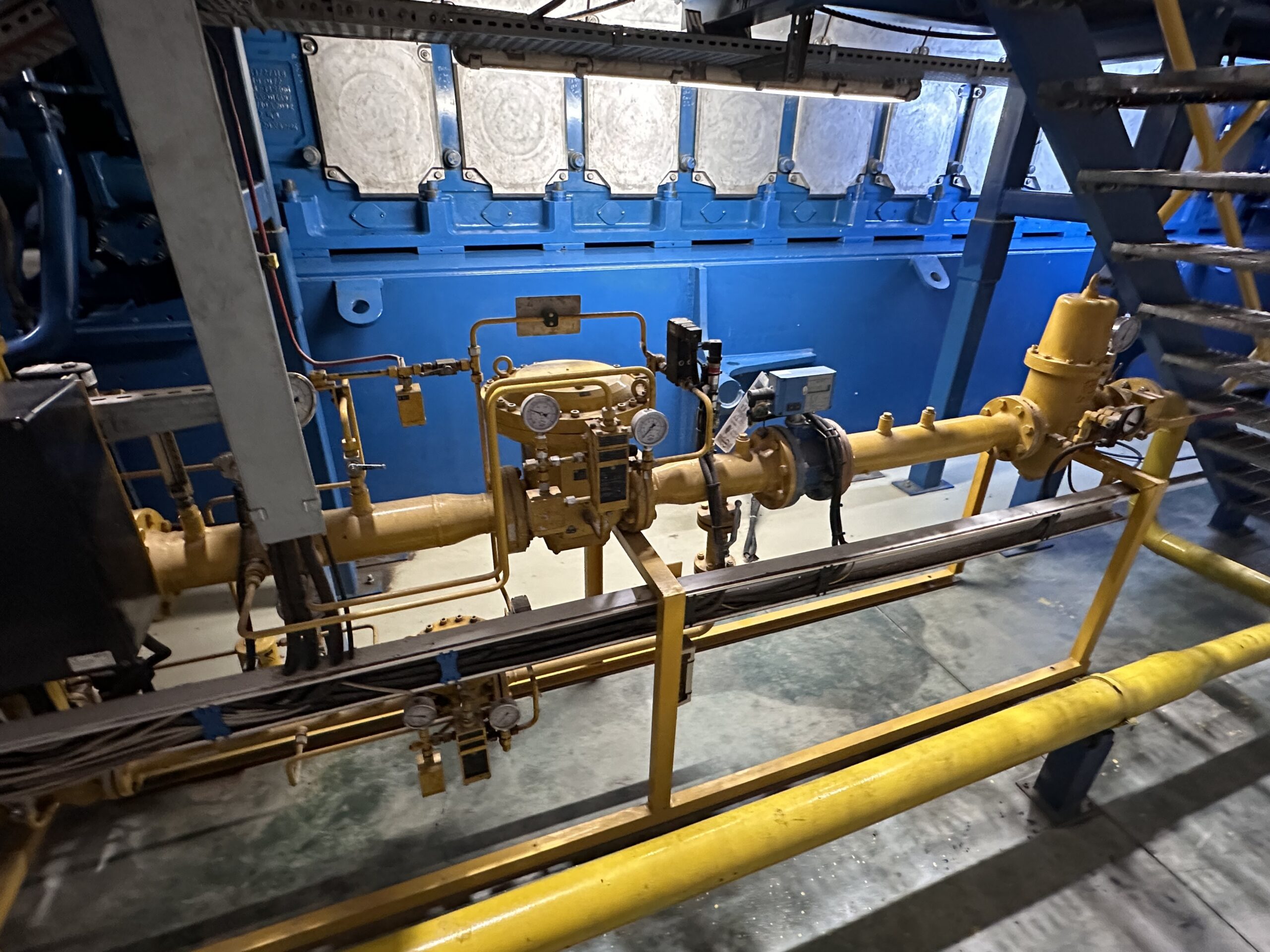

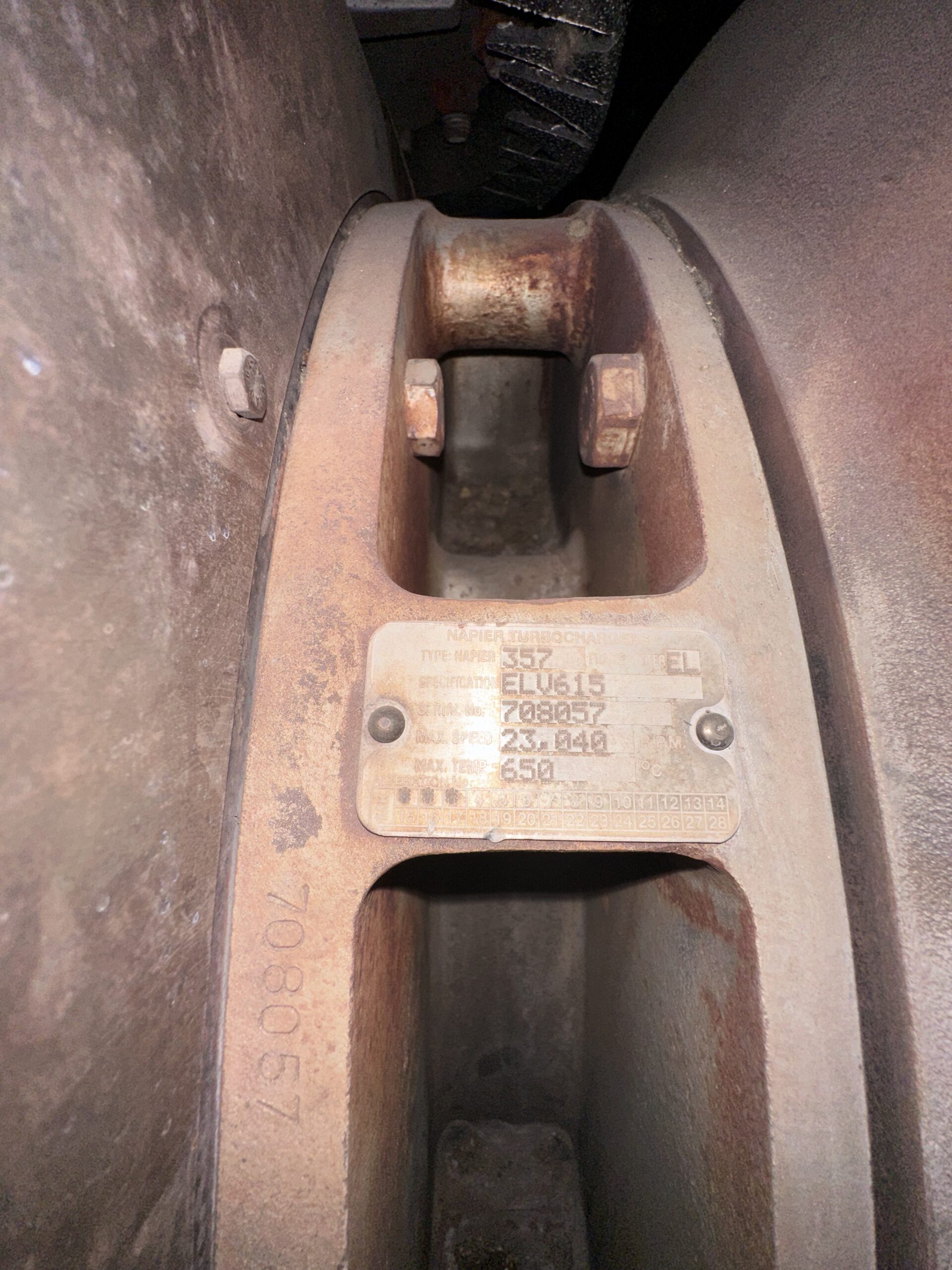

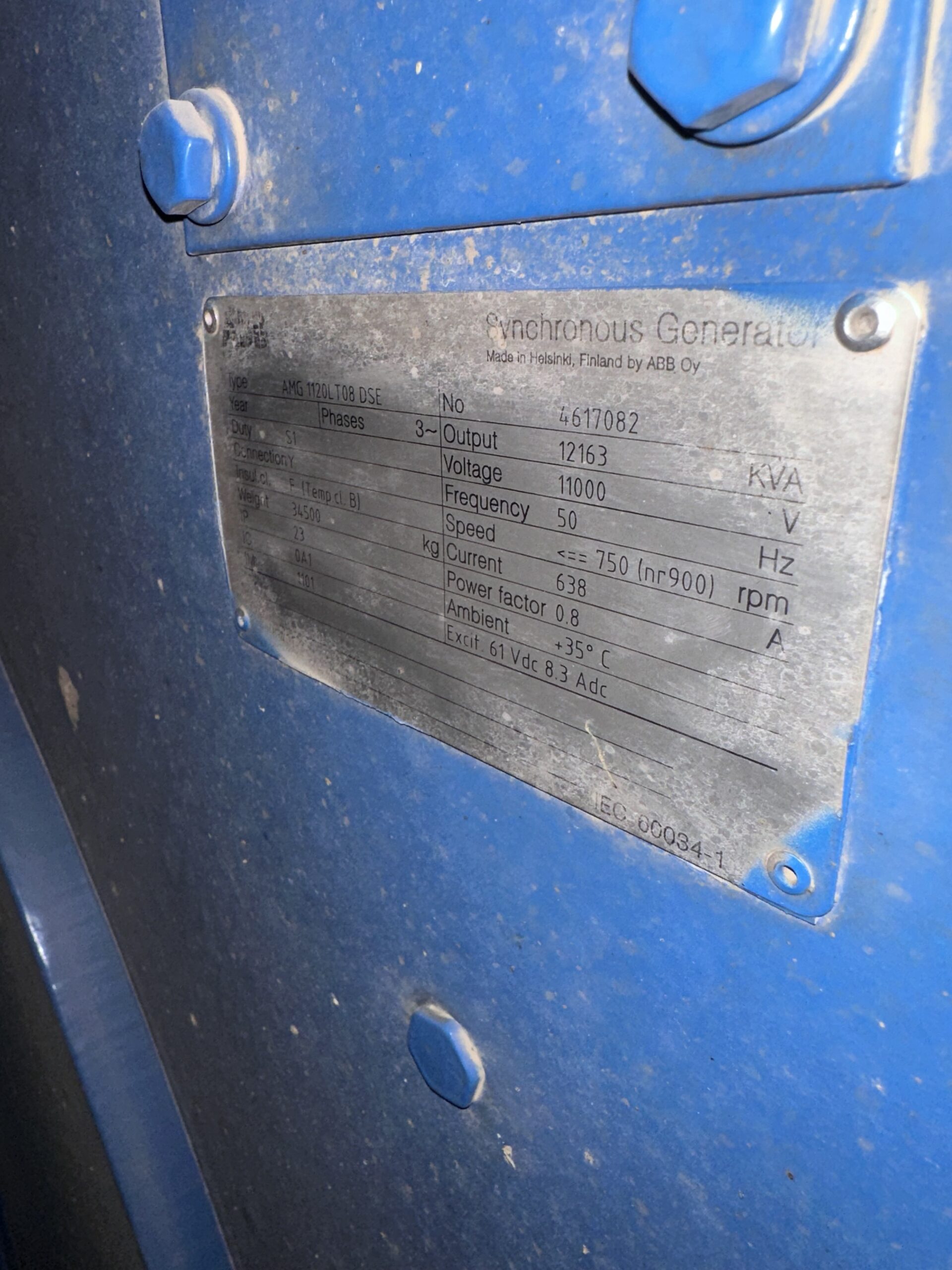

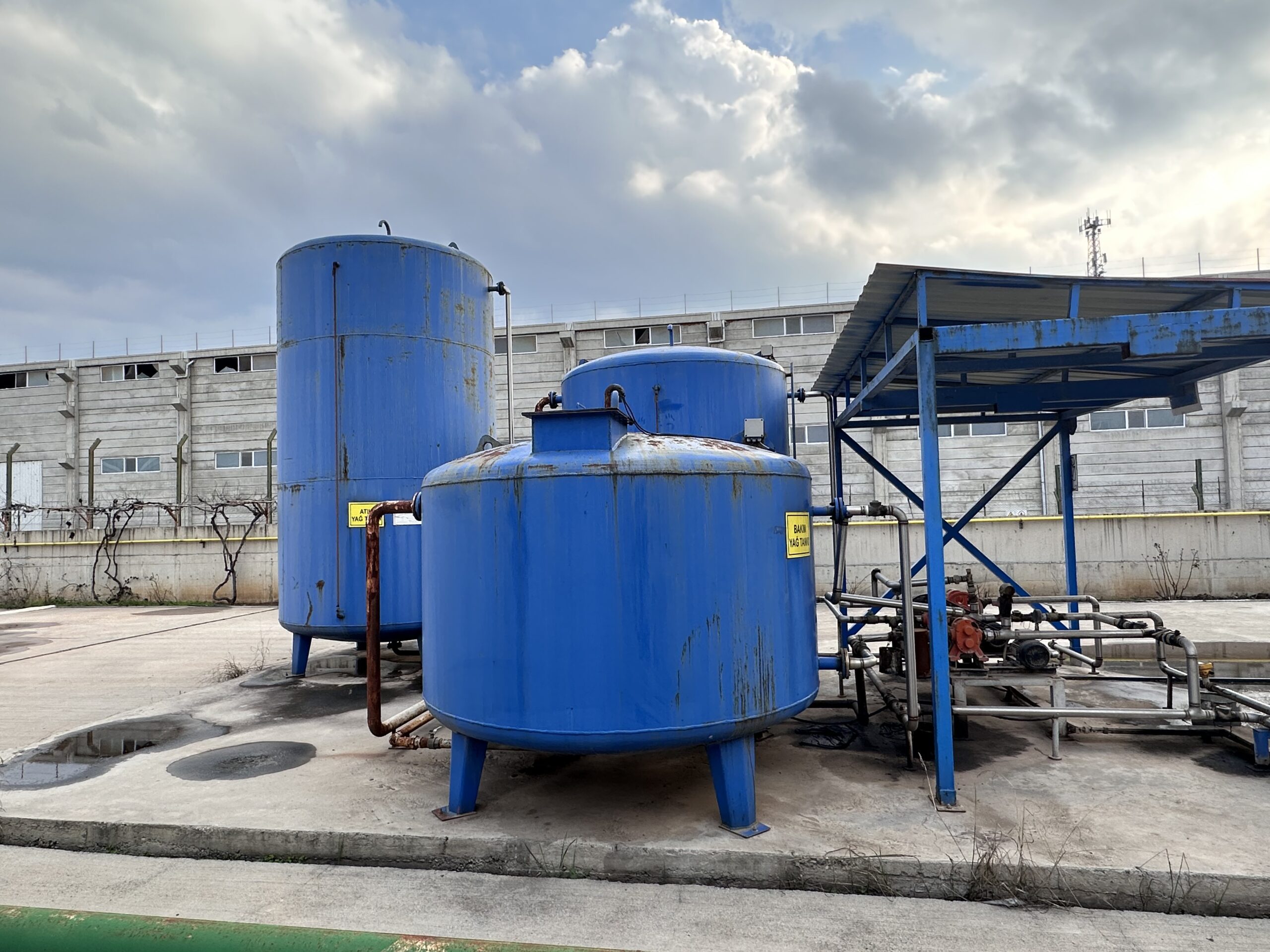

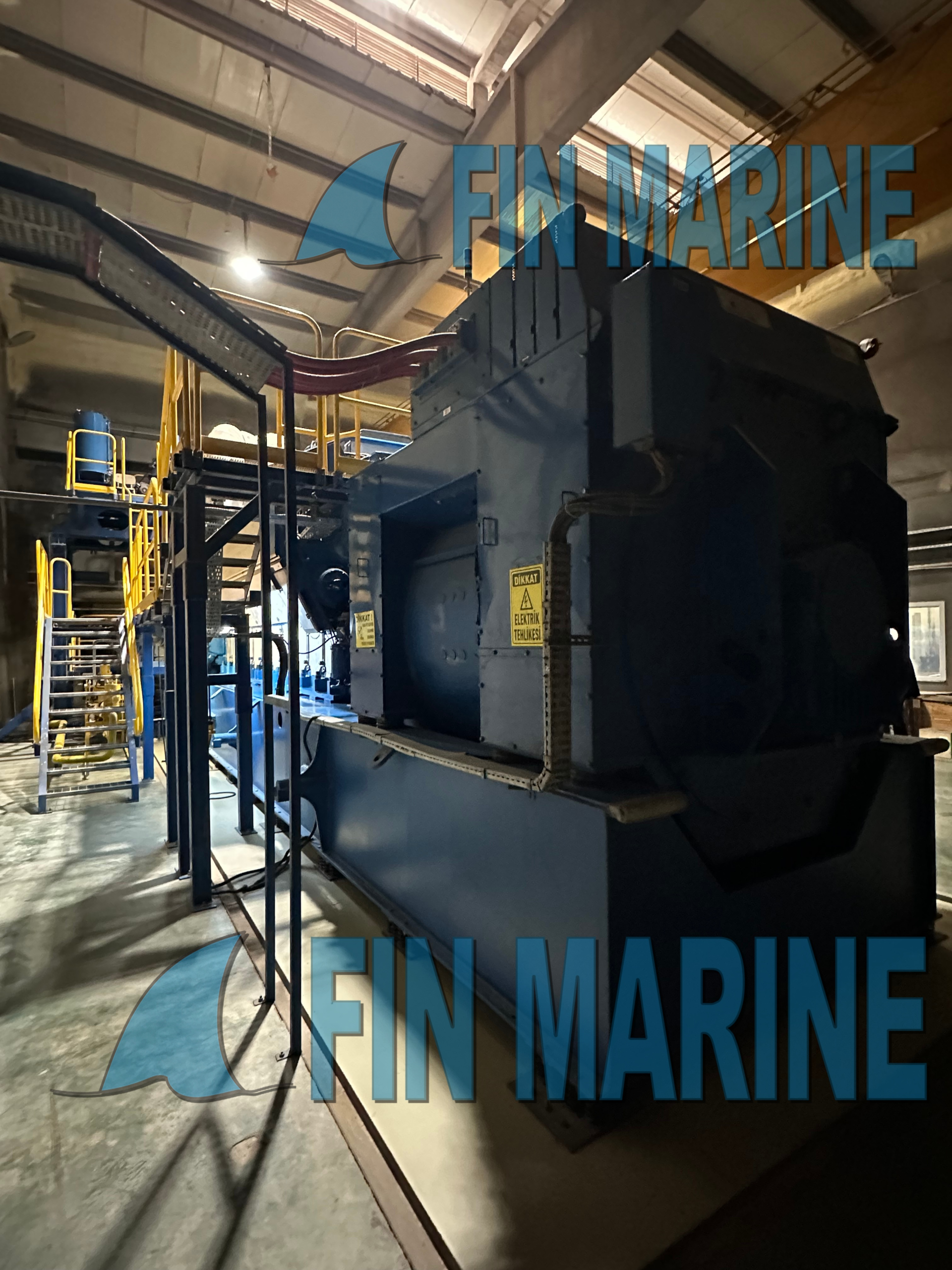

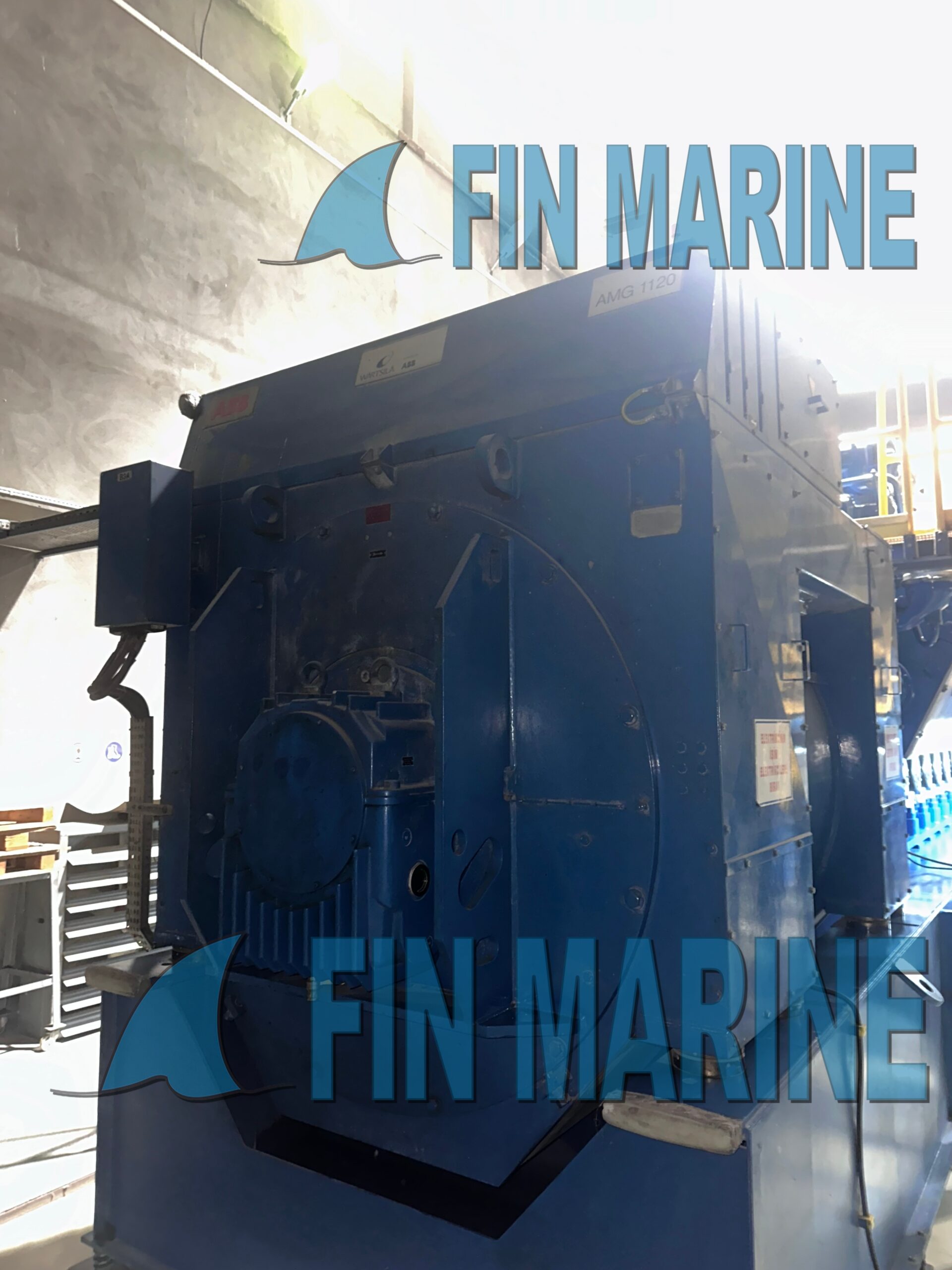

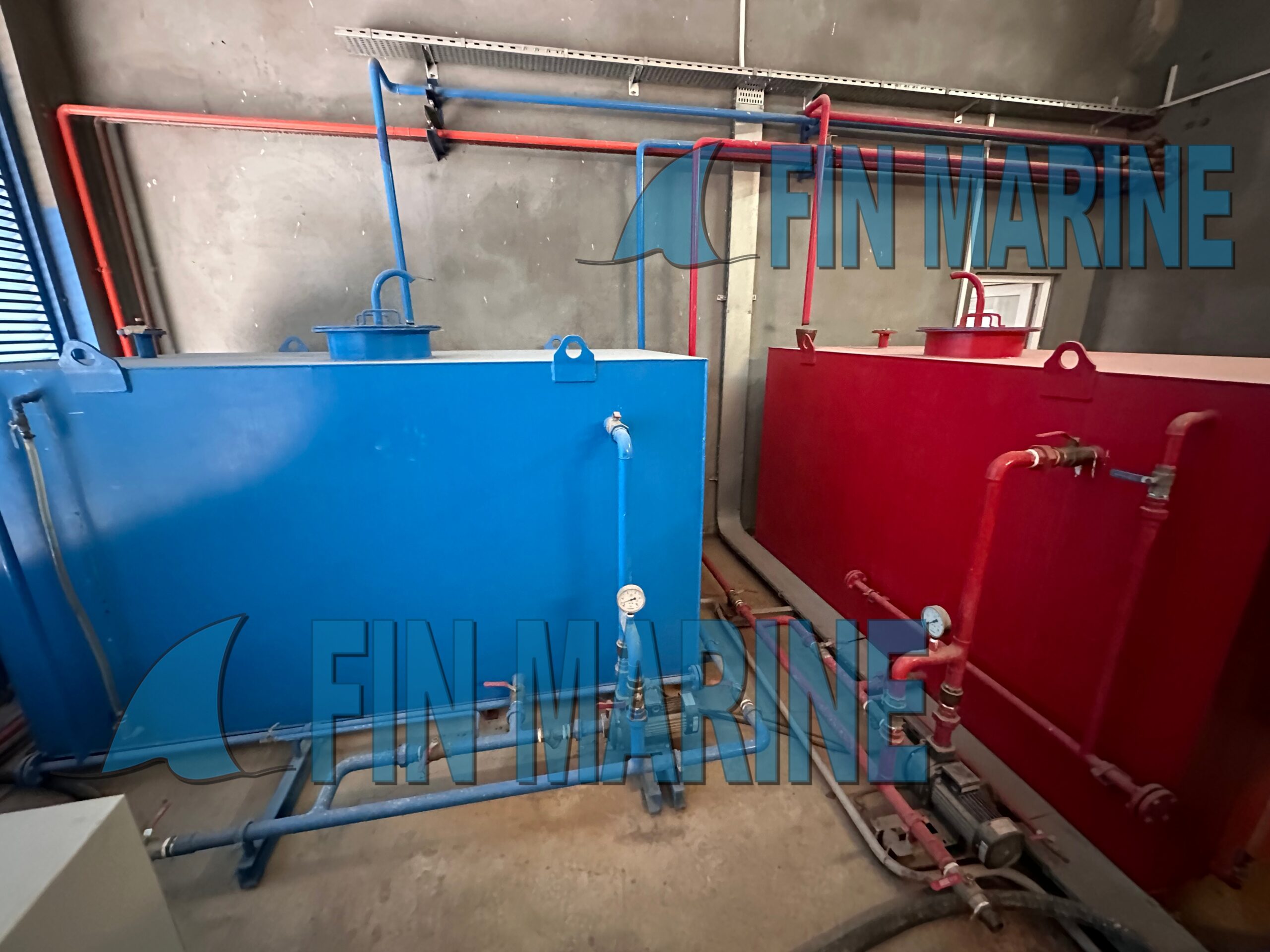

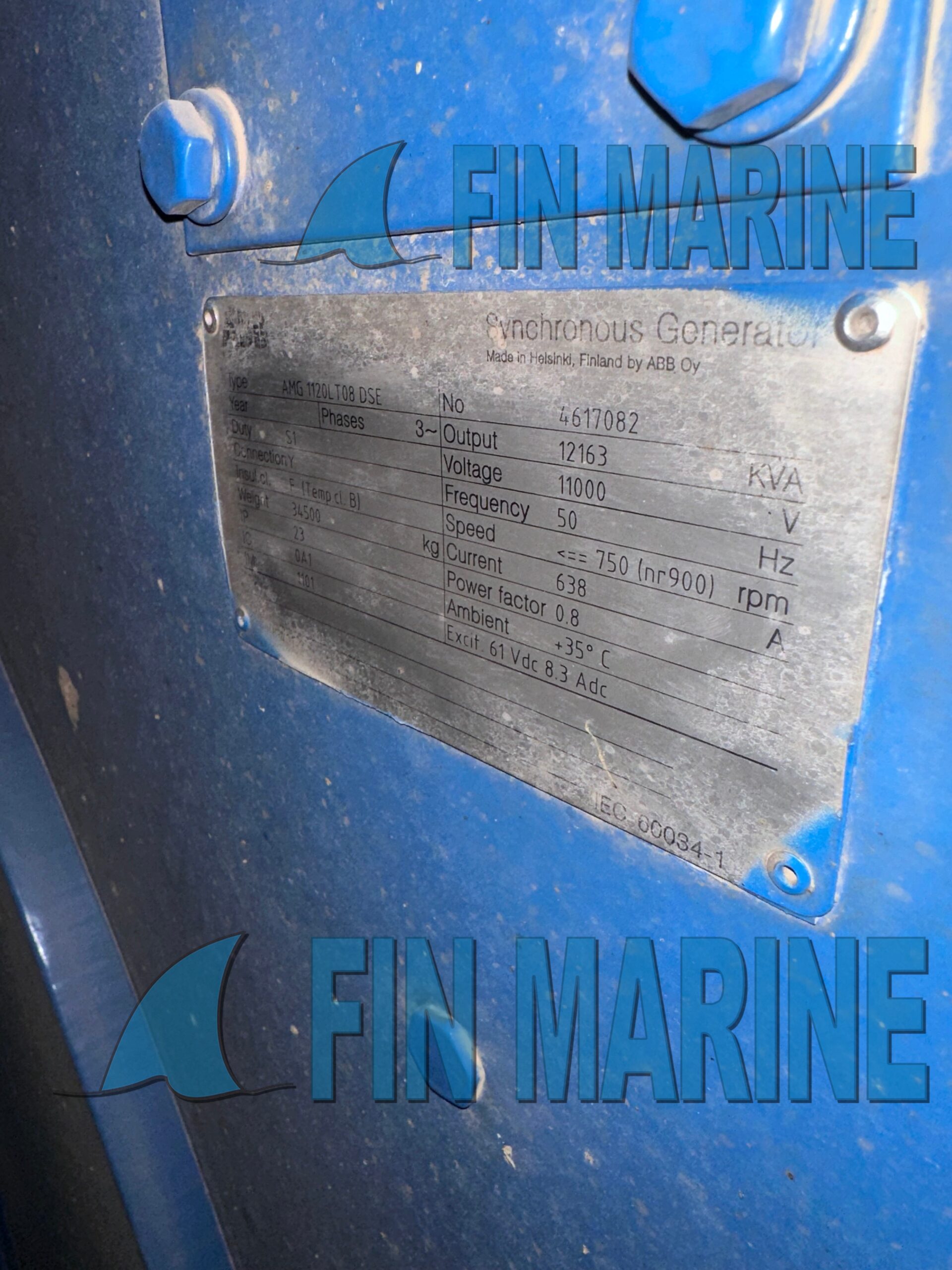

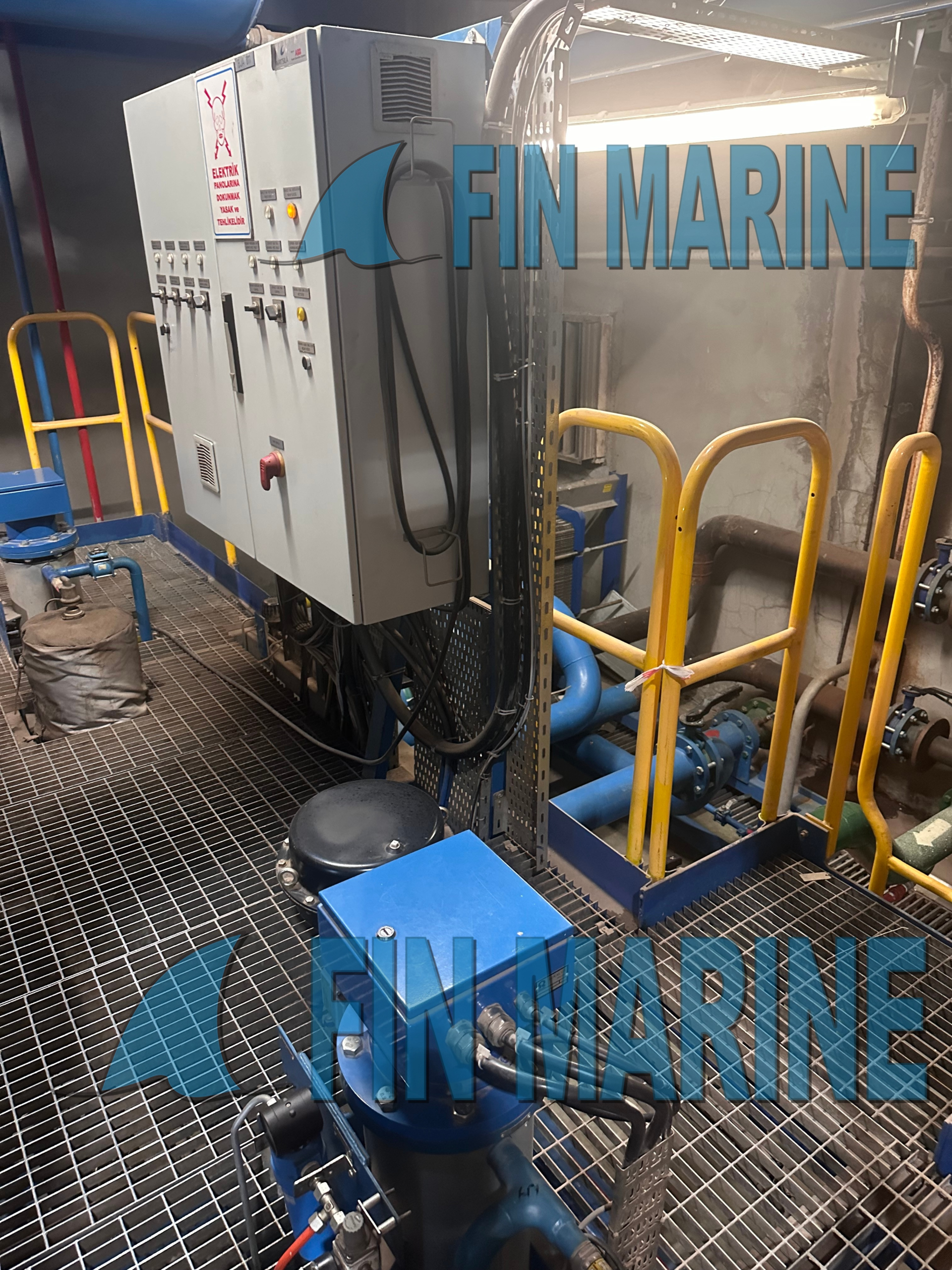

20V34SG engine with all auxiliaries: ABB AMG 1120LT08 Alternator, compressors, Lt Ht water tanks, LV MV HV step up Transformers, control panels, Unic control system, radiators, maintenance tanks, 2 x Napier 357 turbochargers, safety spares, Caterpillar emergency generator,Natural Gas Regulator Unit, engine tools, instruction manual and more…
Please find below the Wartsila 20V34SG engine scpecifications:
Configuration V Engine form
Number of cylinders: 20
Cylinder bore: 340mm
Stroke: 400mm
Speed: 750 RPM
Mean piston speed: 10m/s
Mean effective pressure: 19.8 Bar
Swept volume per cylinder: 36.3 dm3
Compression ratio: 12:1
Number of inlet valves: 2
Number of outlet valves: 2
