Two Solar Saturn 20 Gas Turbines – Technical Specifications & Condition Assessment
Professionally maintained and packaged gas turbine units, ideal for industrial applications. Both turbines have been inspected, documented, and are ready for deployment.
Turbine #1 – Serial Number 1299S
Basic Specifications
- Model: Solar Saturn 20
- Engine Version: 1601 GSC (Gas Suction Cooled)
- Serial Number: 1299S
- Power Rating: 1,204 kWe (1,613 HP)
- Fuel Type: Natural Gas
- Combustion Type: Conventional
- Generator Speed: 22,562 RPM @ 50 Hz
- Turbine Configuration: 3-stage axial turbine
- Compressor: Multi-stage axial compressor
Operating Parameters
- Turbine Inlet Temperature: 1,289°F (698°C)
- Exhaust Temperature: 1,300°F (704°C) setpoint
- Compression Ratio: Approximately 8.5:1
- Mass Flow Rate: High-efficiency design
- Emissions: Low NOx conventional combustor
Physical Specifications
- Package Type: Cold End Drive (CED)
- Mounting: Skid-mounted industrial package
- Control System: Solar’s standard turbine control
- Lubrication: Integrated oil system
- Starting: Electric motor starter
Turbine #2 – Serial Number 1368S
Basic Specifications
- Model: Solar Saturn 20
- Engine Version: 1501
- Serial Number: 1368S
- Power Rating: 1,140 kWe (1,528 HP)
- Fuel Type: Natural Gas
- Combustion Type: Conventional
- Generator Speed: 22,562 RPM @ 50 Hz
- Turbine Configuration: 3-stage axial turbine
- Compressor: Multi-stage axial compressor
Operating Parameters
- Turbine Inlet Temperature: 1,103°F (595°C)
- Compression Ratio: Approximately 8.5:1
- Control System: Solar’s standard turbine control
Package Type
Cold End Drive (CED)
Available Documentation
- ✅ Complete Borescope Inspection Reports (21–22 pages each)

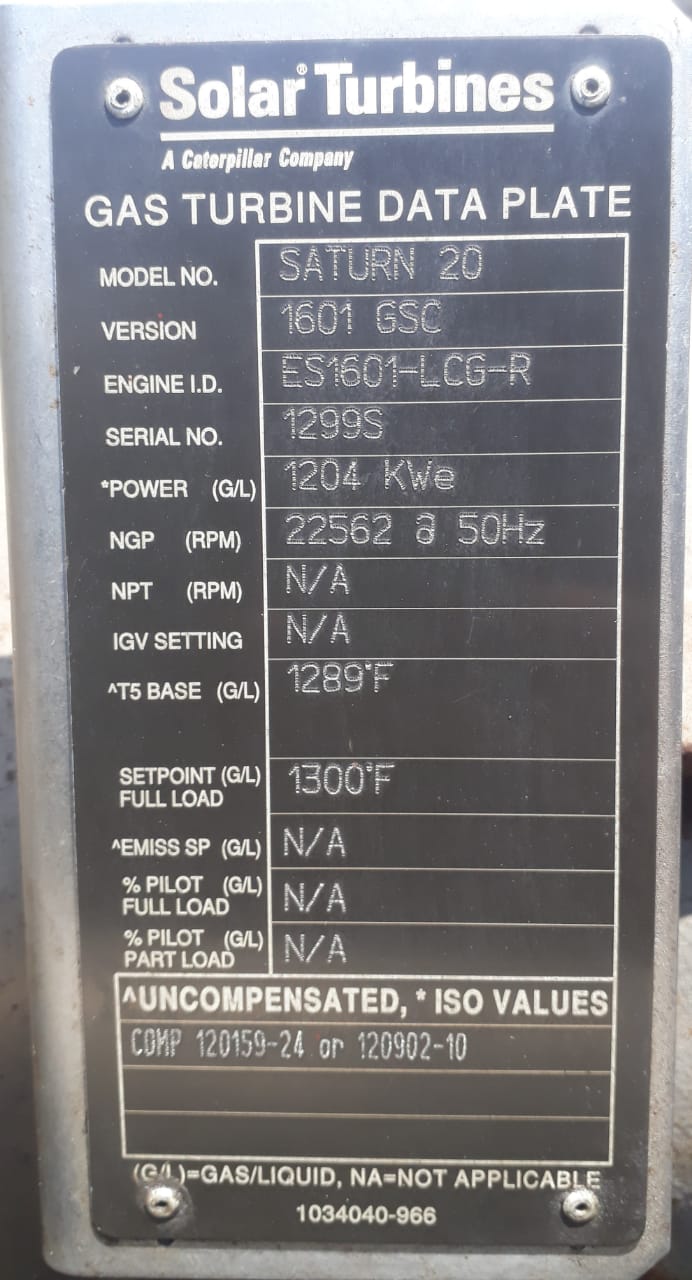

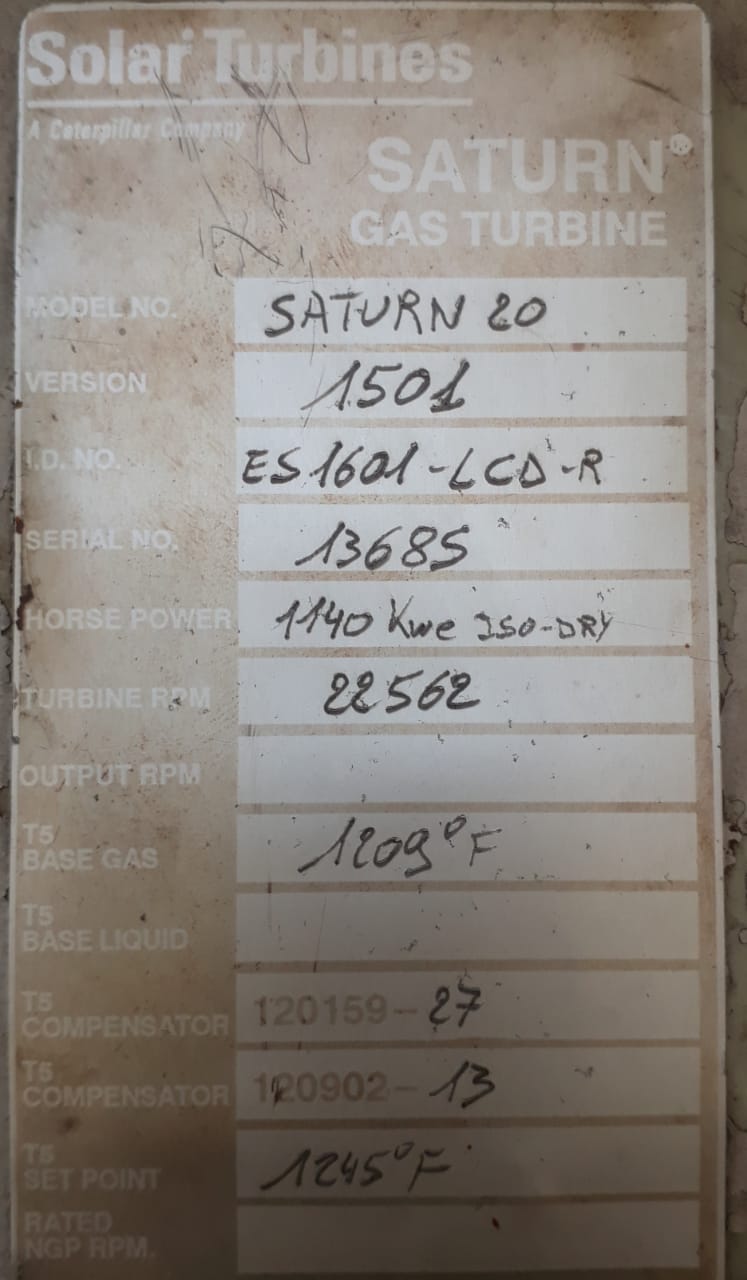

- ✅ Equipment Data Plates photographed

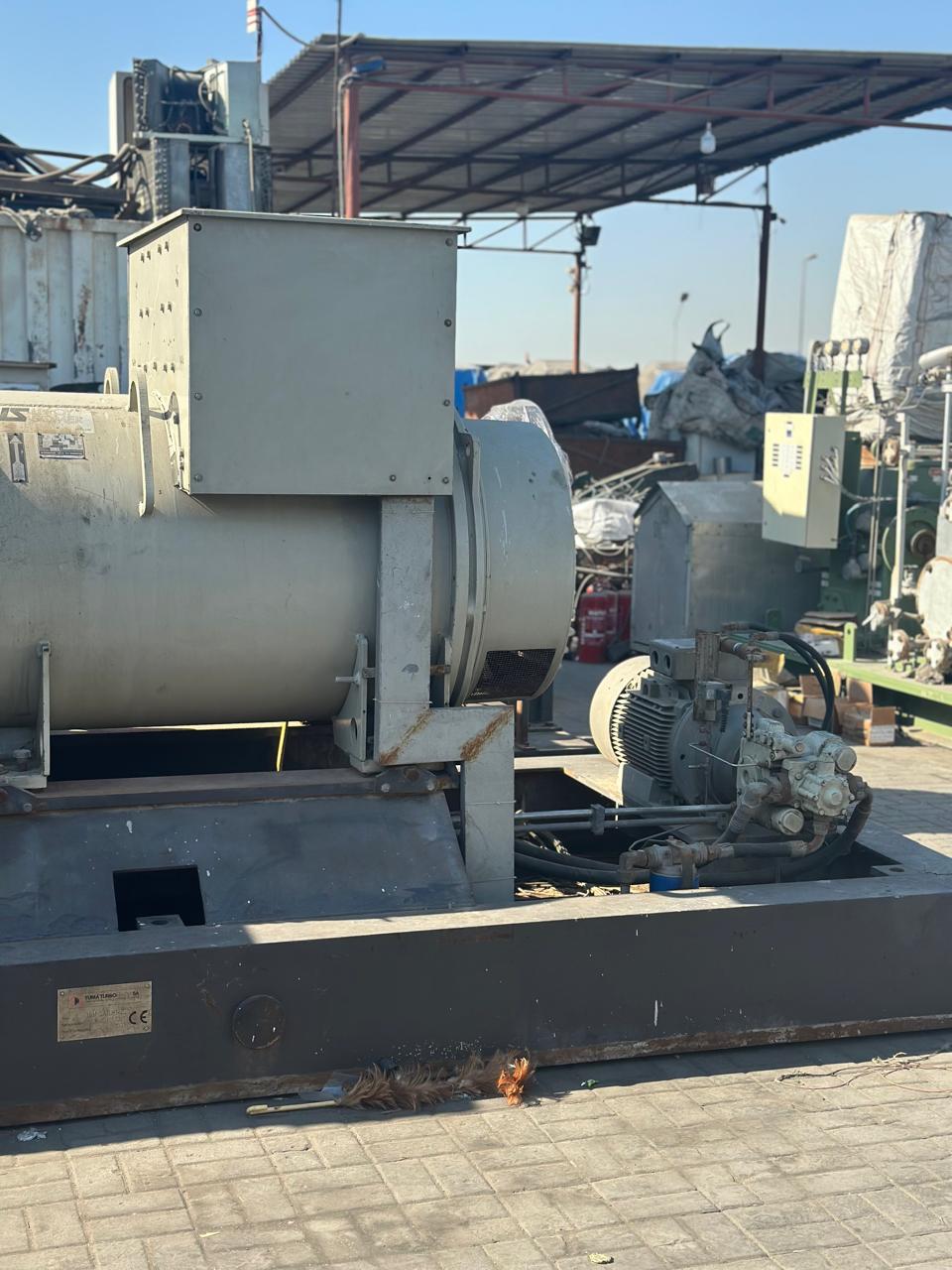

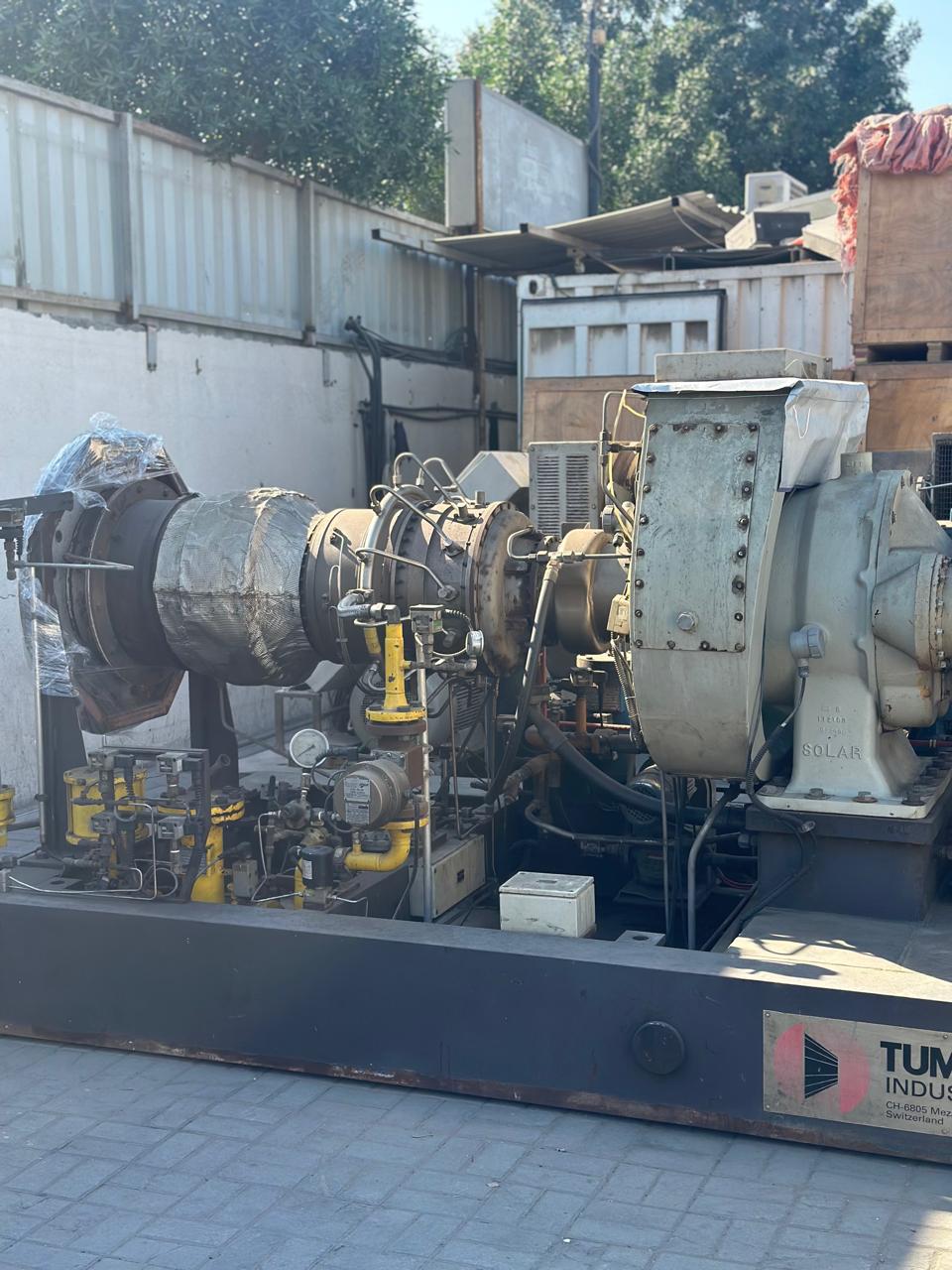

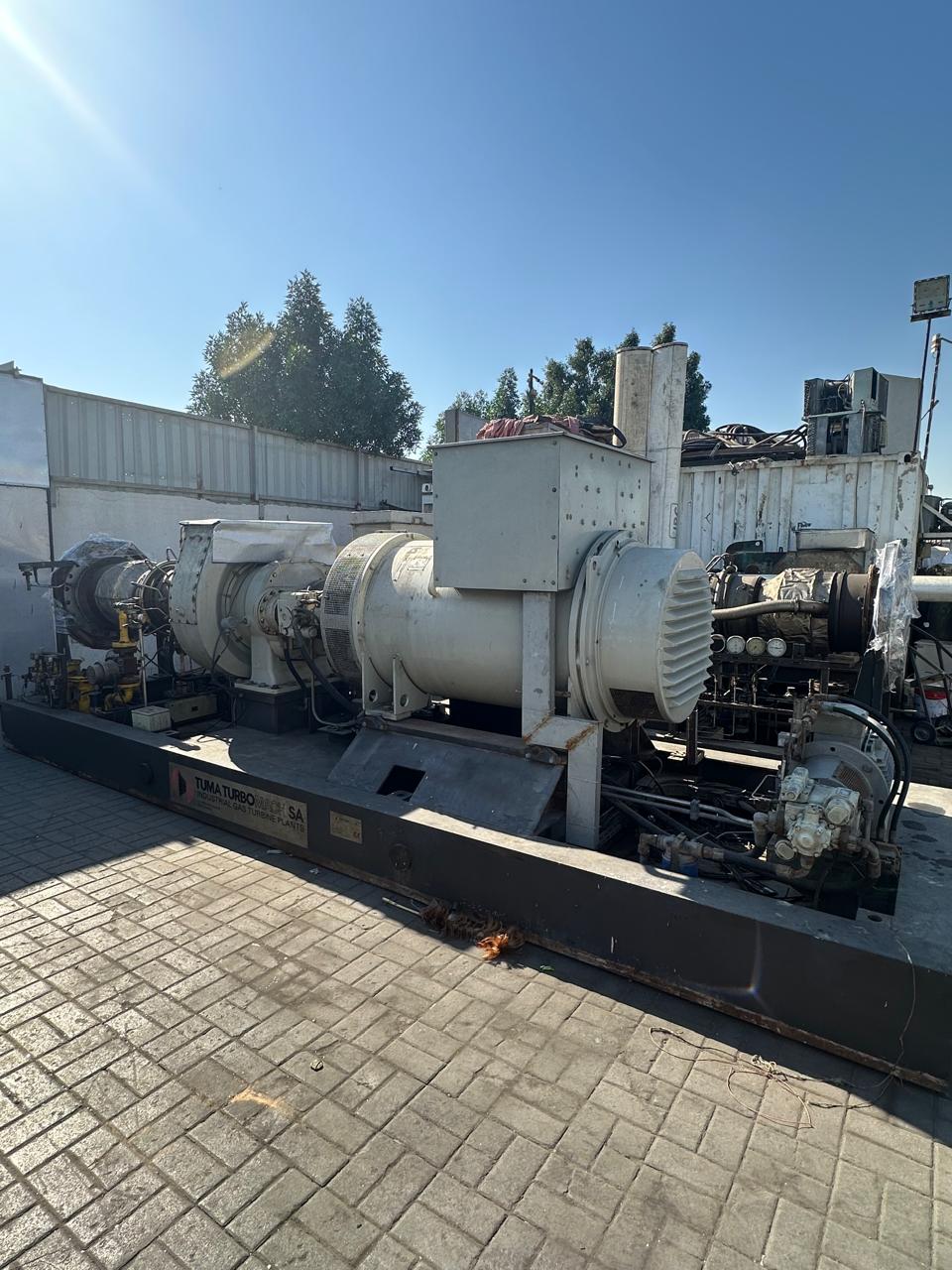

- ✅ Turbine package status photos
- ✅ Detailed component condition assessment
- ✅ Professional inspection by certified technician
- ✅ High-resolution borescope photography of all stages
