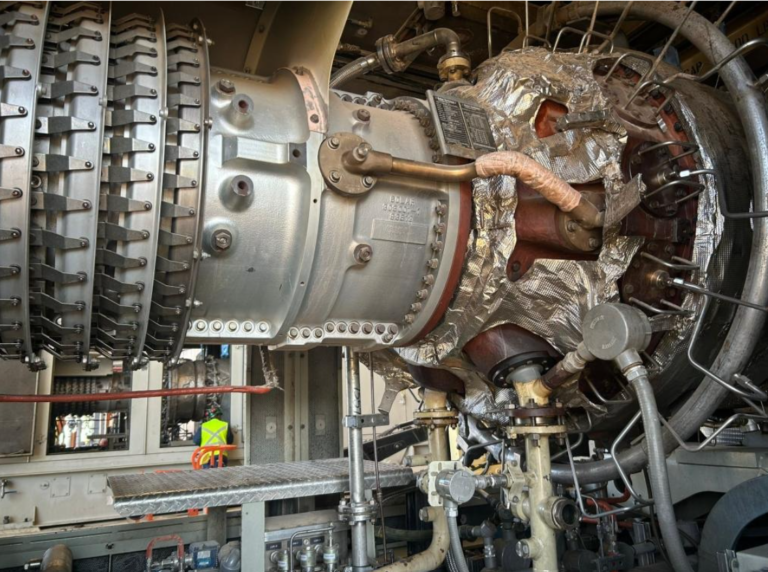

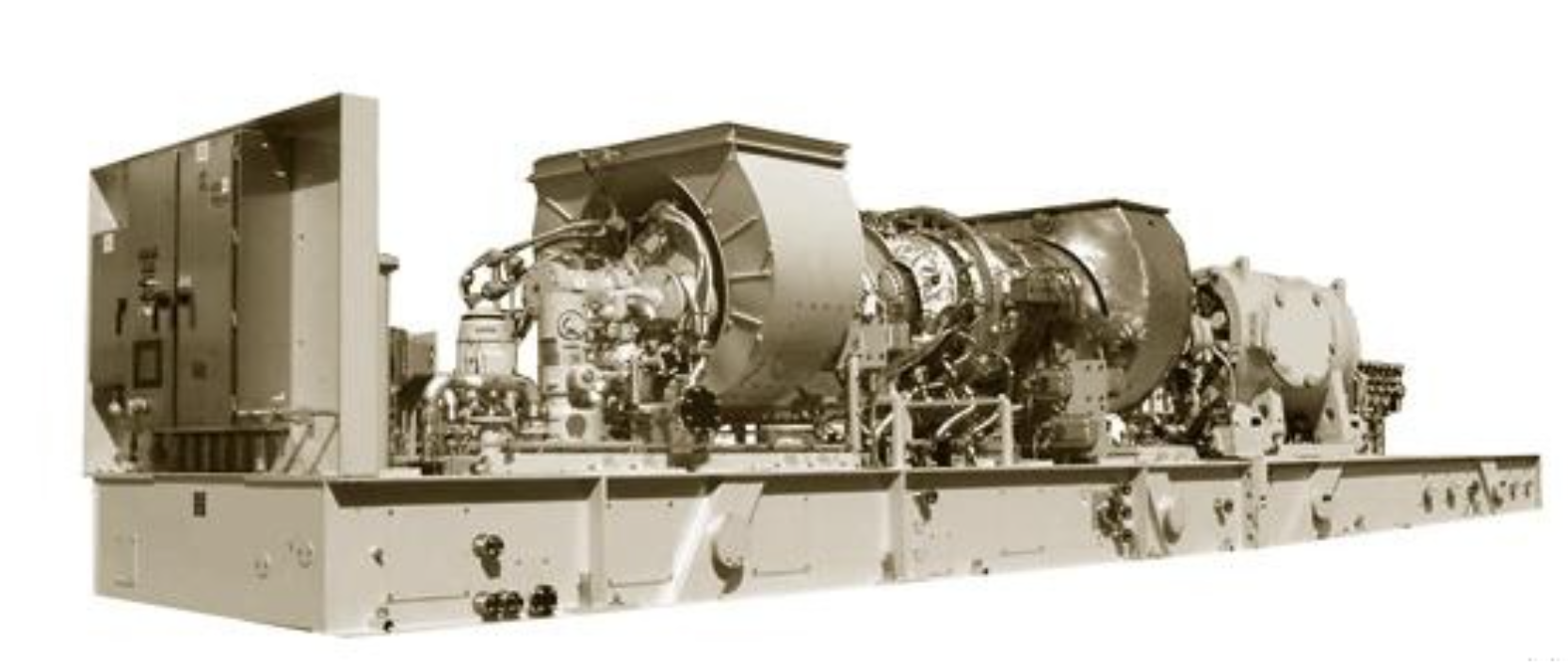

# Solar Turbines Mars 100 SoLoNOx Generator Sets
## Equipment Summary
| Specification | Details |
|—————|———|
| **Quantity** | 2 Units Available |
| **Manufacturer** | Solar Turbines (Caterpillar) |
| **Model** | Mars 100 SoLoNOx – Version 15000SAN |
| **Year of Manufacture** | 2011 |
| **Power Output** | 11.3 MW / 14,800 HP per unit |
| **Frequency** | 60 Hz |
| **Fuel Type** | Natural Gas |
| **Condition** | Used – Zero Hours Available After Overhaul |
| **Location** | USA |
—
## Technical Specifications
### Gas Turbine
| Parameter | Value |
|———–|——-|
| Turbine Model | Mars 100-15000SAN |
| Shaft Power | 14,800 HP (11.3 MW) |
| Gas Generator Speed (NGP) | 11,168 RPM |
| Power Turbine Speed (NPT) | 9,500 RPM |
| Fuel Gas Pressure | 500 psig max (3,450 kPag) |
| Emissions Technology | SoLoNOx (Dry Low NOx) |
—
## Scope of Supply

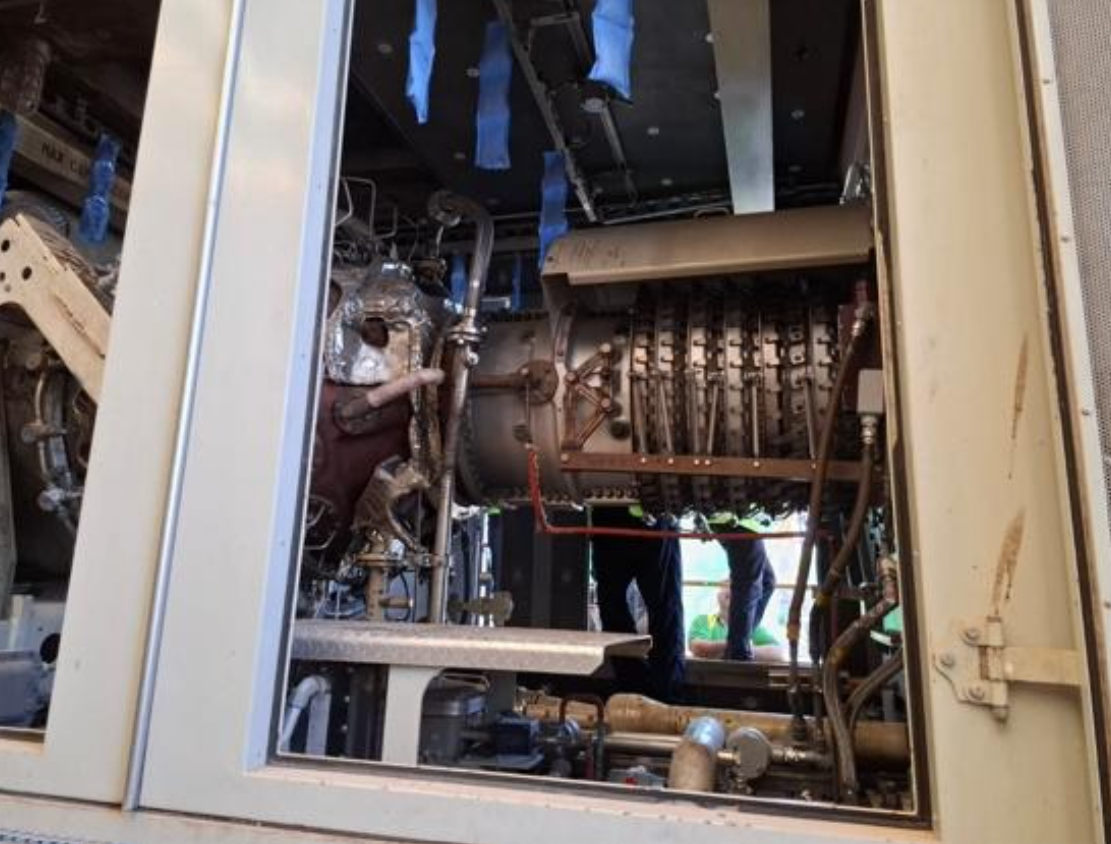

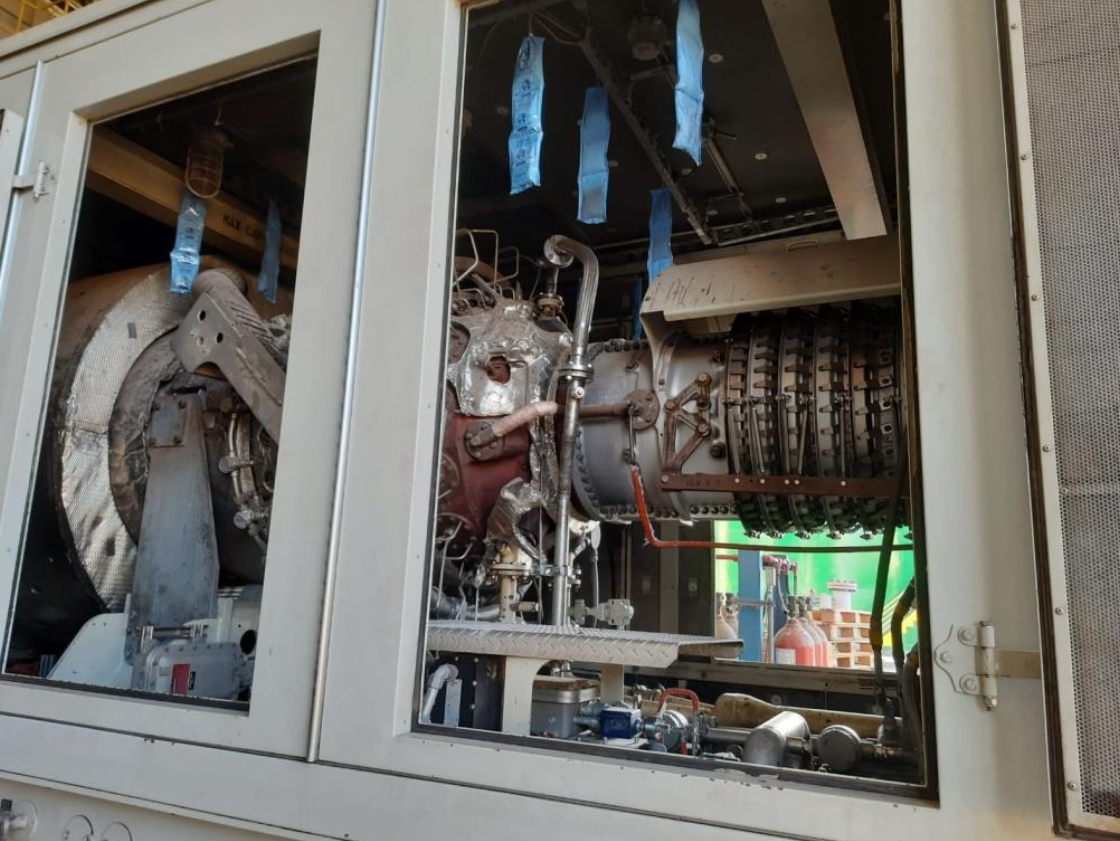

### Gas Turbine Package

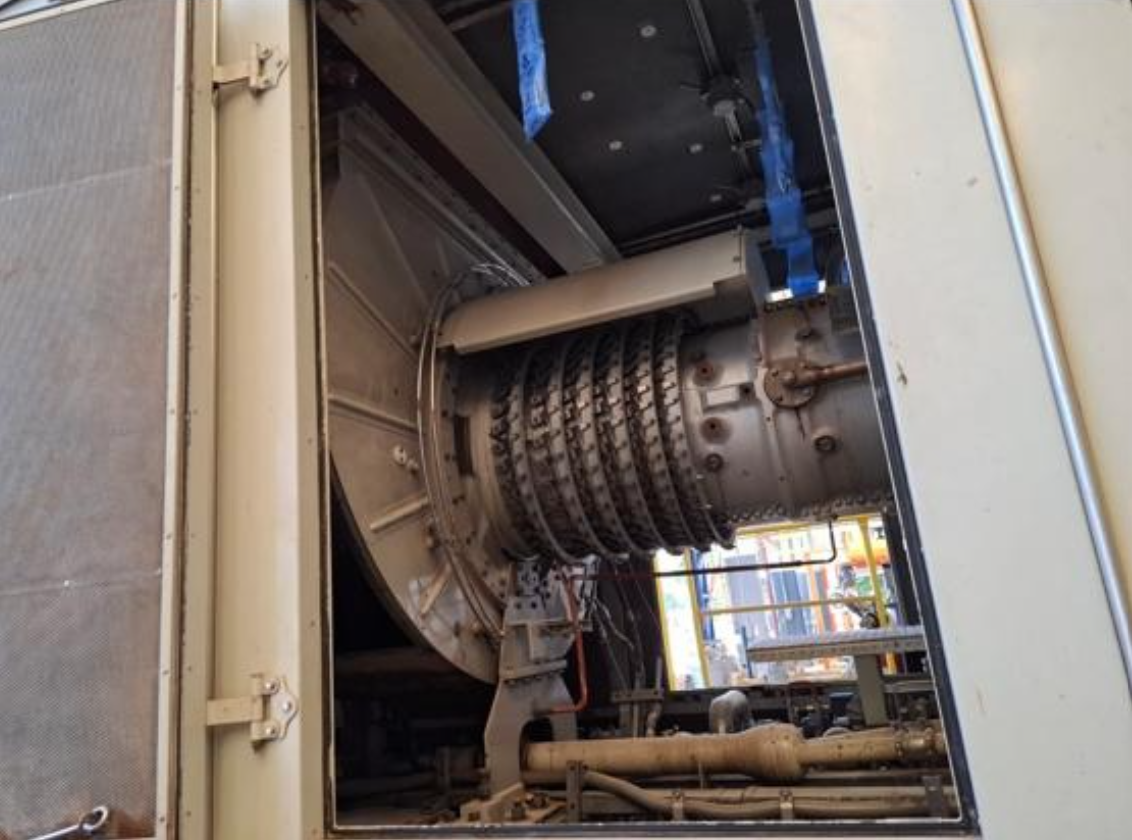

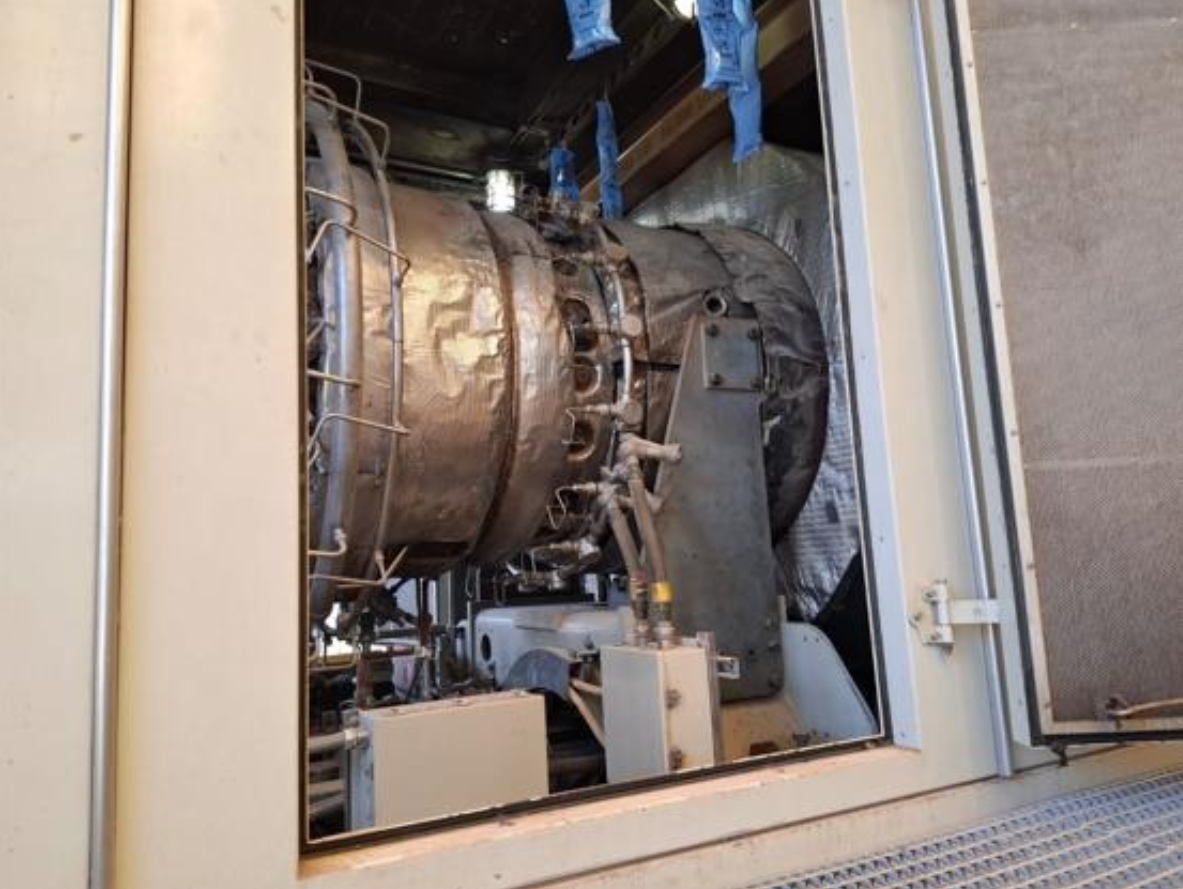

– Complete gas turbine assembly (axial compressor, combustion chamber, power turbine)
– Inlet system with volute and silencers
– Exhaust system with volute and silencers
– Fuel gas system (primary, secondary, and PEC valves)
– IGV electro-actuator
– Injectors, air and gas manifolds
– Bleed valve assembly
### Lube Oil System
– Main oil tank with heater
– Mechanical main pump
– AC electric pre/post lube pump
– DC electric backup pump
– Duplex filter with 6-way valve
– Pressure and temperature regulation
– Oil mist separator with flame arrester
– Supply and drainage piping
### Starting System
– 120V DC starter motor
– Associated controls

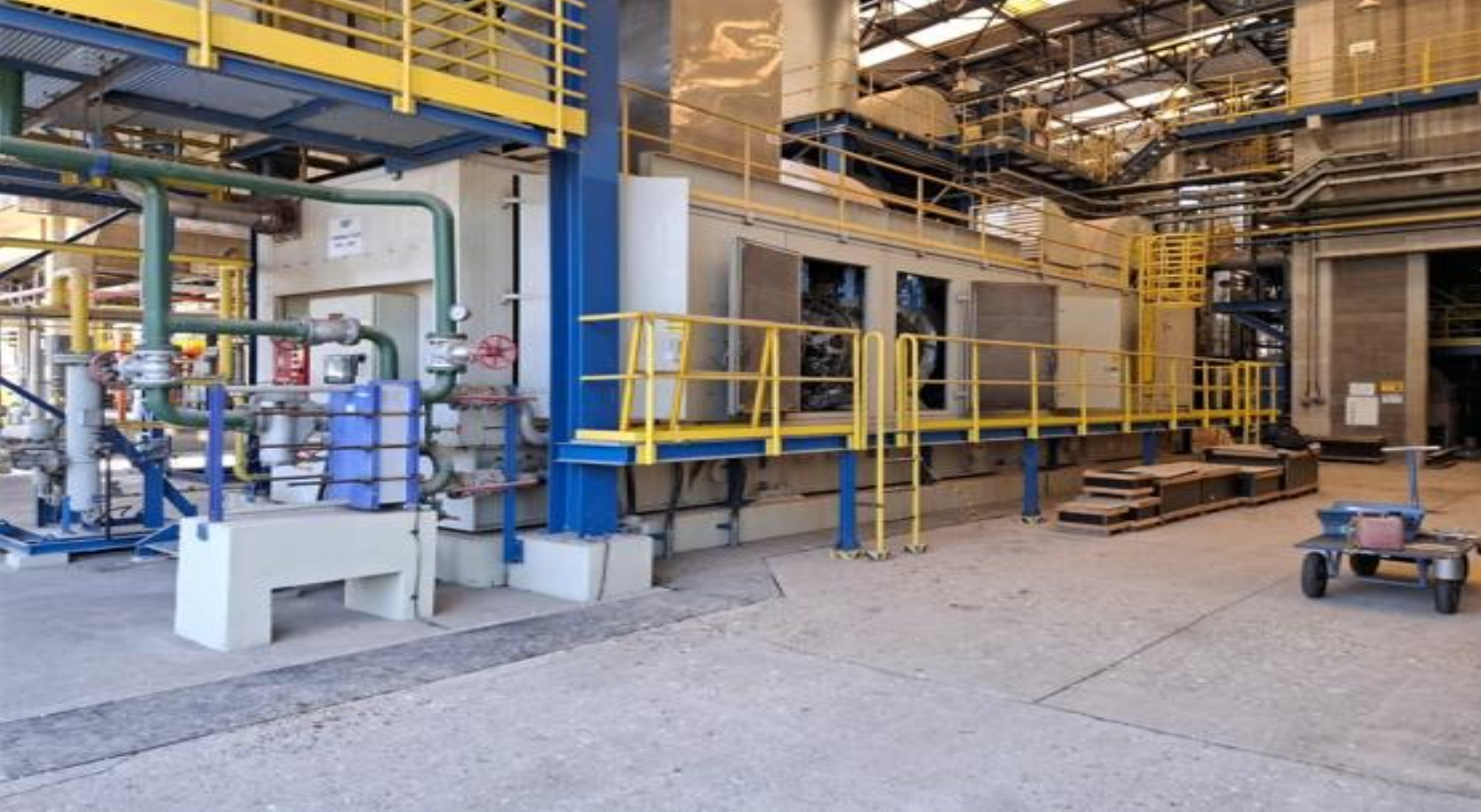

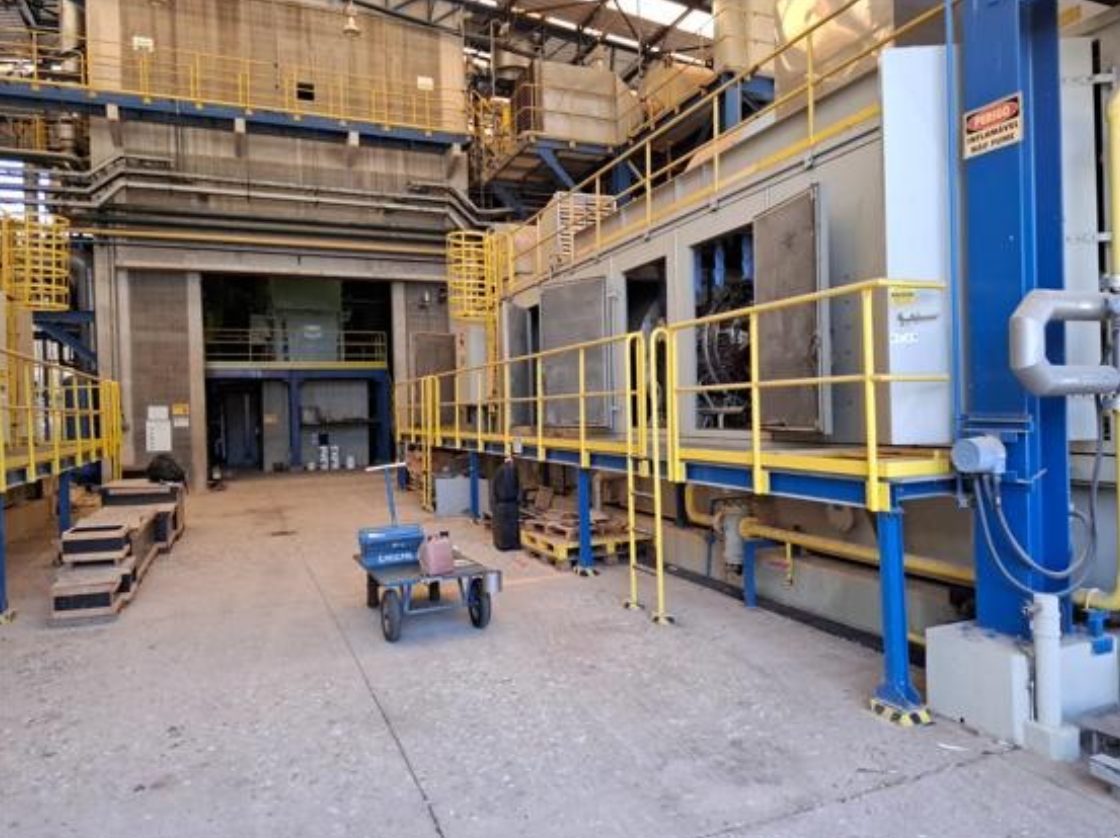

### Enclosure & Ventilation
– Acoustic enclosure with access panels and doors
– Air intake duct with ventilation fan
– Air outlet ducts
– Intake and discharge dampers with shutters
– Filter house
### Fire Protection
– CO2 piping system
– Fire detection system
– Gas, flame, and heat detectors

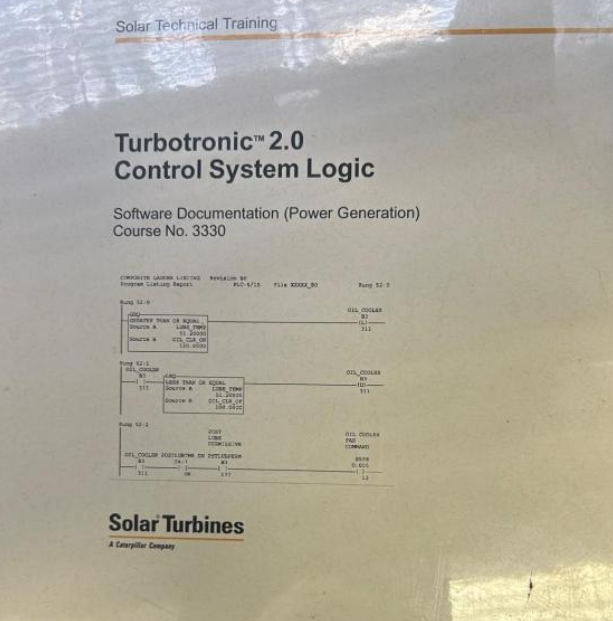

### Controls & Instrumentation

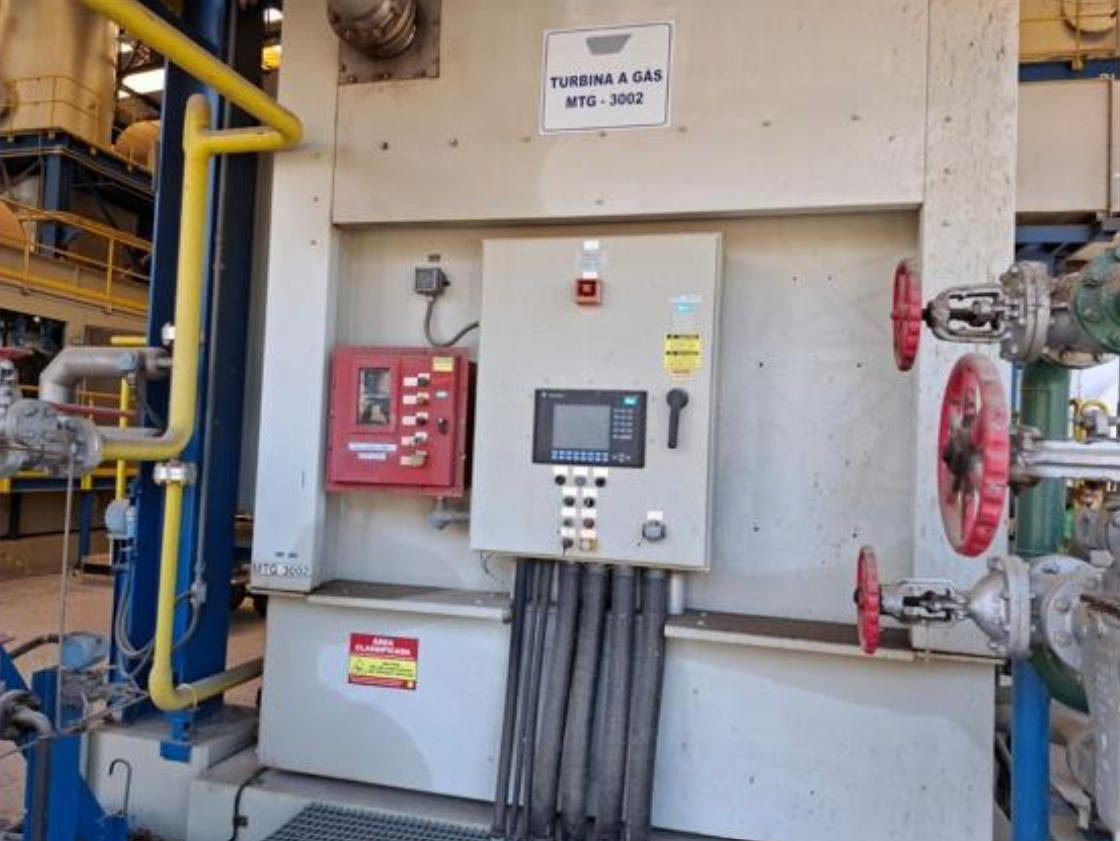

– Local control panel with PLC
– Pressure transmitters
– Vibration monitoring modules
– Thermocouples
### Generator
– Electric generator included (specifications available upon request)
